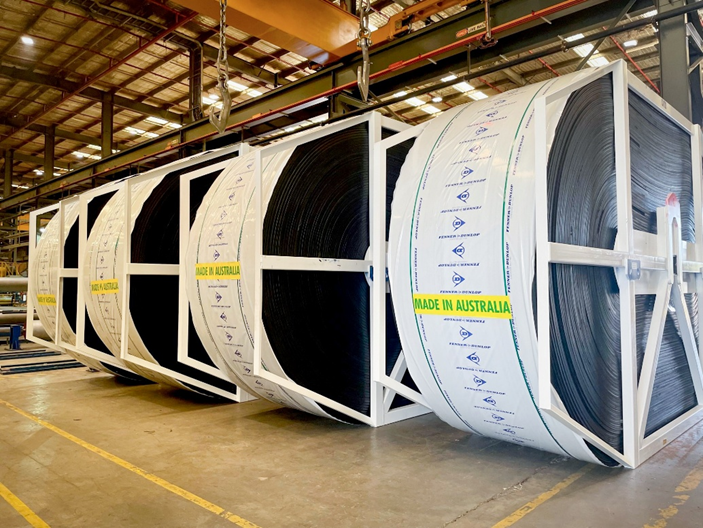

An 'endless' array of slinger belts
Fenner slinger belts come in a range of lengths and widths and are made completely 'endless' without a splice join. Endless construction eliminates the risk of splice failure and ensures smooth, high speed running in harsh, abrasive conditions.
Our belts are locally manufactured to your specific requirements on highly accurate mandrels to eliminate tracking issues.
Fenner patented rubber and fabrics
Typically manufactured using PN600/3 ply construction with 9 mm x 3 mm high abrasion resistant rubber covers and polyester nylon fabric carcass. Specialised rubber compounds such as fire resistant-anti-static (FRAS) and oil resistant are available with various carcass constructions available on request.
Operating tension and speeds can be tailored to your specification, with 50 N/mm and 20 m/s being our standard.
Our product range:
Endless Length |
Width |
2390 mm |
Up to 1400 mm |
2440 mm |
Up to 500mm |
2890 mm |
Up to 1050 mm |
3676 mm |
Up to 1050 mm |
4220 mm |
Up to 1050 mm |
4285 mm |
Up to 1050 mm |
4461 mm |
Up to 1050 mm |
4823 mm |
Up to 1050 mm |
